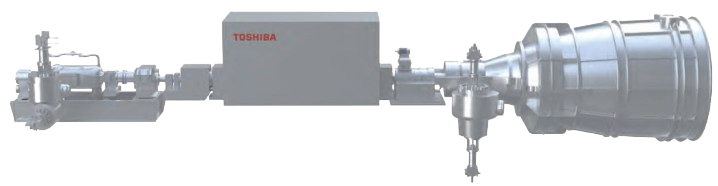

The TX-2G geared turbine consists of two casings and incorporates one high-speed, high-pressure turbine and one intermediate / low-pressure turbine (ILP). A reduction gear between the turbines reduces the rotational speed of the high pressure turbine to 3,000 rpm (50Hz) or 3,600 rpm (60Hz).

The TX-2G turbine system offers benefits not possible with a traditional turbine. One benefit is quick start-up and fast response making the TX-2G a perfect choice to complement variable output of alternative energy sources such as solar energy and wind energy. Additionally, the high speed of the high-pressure turbine reduces the footprint of the TX-2G without sacrificing performance, leading to constructability benefits and construction cost savings.

Features

  • Down- or axial-exhaust options.
  • High performance and efficiency in a single-flow exhaust.
  • Compact high-speed, high-performance and modularized high-pressure turbine.
  • Short start-up times and flexible start-up modes.
  • Class-leading availability and reliability.

Specification

MAIN STEAM PRESSUREUP TO 170 BARA / 2,466 PSIA
MAIN STEAM TEMPERATUREUP TO 585 DEG. C / 1,085 DEG. F
REHEAT TEMPERATUREUP TO 585 DEG. C / 1,085 DEG. F
UP TO 585 DEG. C / 1,085 DEG. FUP TO 220 MW
FREQUENCY50HZ OR 60HZ

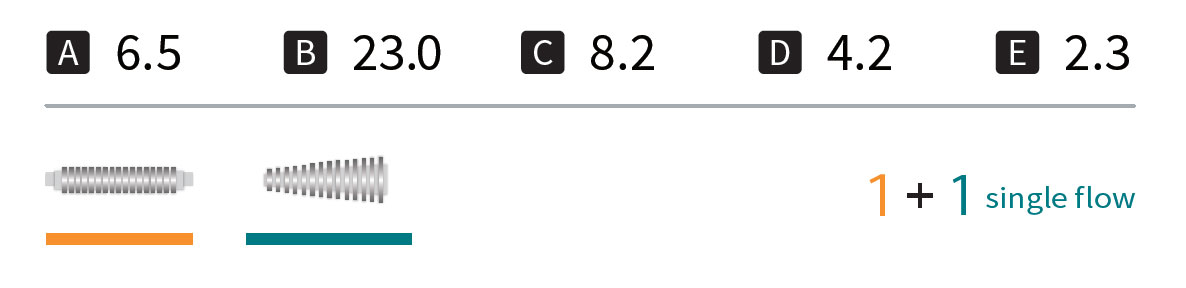

Note: Dimensions vary on a Case to Case basis. Only for Reference.
Units are represented in Meters.
