Industrial motors from Toshiba offer the highest efficiency and torque ratings along with the lowest vibration ratings in the low voltage motor industry. NEMA Premium® Efficient Motors including Premium efficiency motor series 460V motors and NEMA motors meet the petrochemical industry standards and maintain high quality at an efficient level.

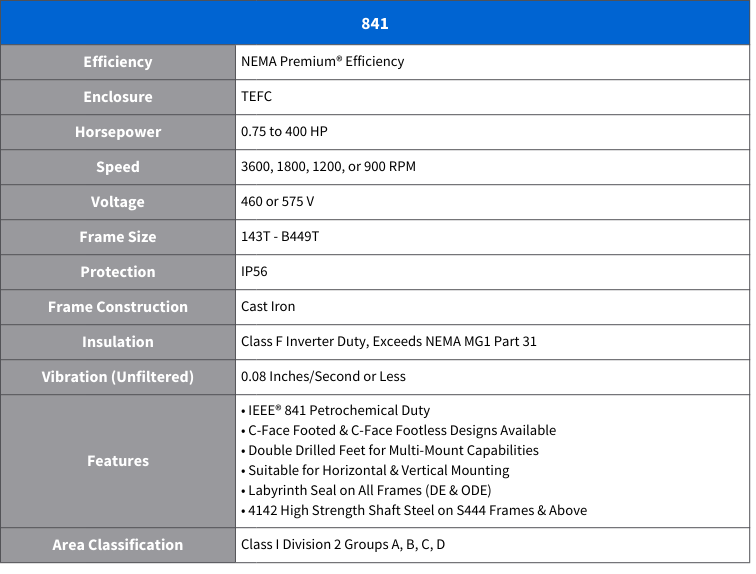

The EQP Global 841 specifically addresses the needs of the petrochemical industry, where premium performance and reliability are imperative. Building on over 20 years of success with our EQPIII motor series, the EQP Global 841 features design enhancements on the rotor, frame, brackets, fan, and bearings.
This cutting-edge motor product line is designed to meet or exceed the competitive demands of the global market, as well as the requirements of the Energy Independence & Security Act of 2007 (EISA), while maintaining the high reliability and quality expected from Toshiba.
Oversized Bearings | The majority of motor failures are bearing-related. Toshiba uses over-sized, 300 series bearings on both the drive end and non-drive end. Oversized bearings allow the EQP Global series motors to last up to ten times longer than motors built with smaller bearings. |
---|---|
Low Vibration |
The EQP Global series exceeds applicable NEMA® vibration limits, which preserves the mechanical integrity of the motor and bearings, extending the life of the motor. |
Heavy Duty Construction | The EQP Global series has a robust cast iron design to increase stability and eliminate common mechanical failures. The durable construction includes increased ribbing in the end bells, maximum surface area at connection points, and deep bearing pockets. |
Insulation with Wide Thermal Capability | By incorporating Class H insulation materials in its winding designs, the EQP Global series motors have increased thermal protection. Additionally, these motors operate with very low temperature rise at rated conditions, giving them a wide thermal margin and extended motor life. The life of the insulation doubles for every 10 degrees run below the insulation rating. |
C-5 Rated Inter-Lamination Material | The EQP Global series uses C5-rated thermal materials on its stator and rotor laminations, that can withstand burnout temperatures over 1000°F. The C5-rated thermal materials provide increased thermal efficiencies and excellent rewind ability characteristics. |
High Torque Output | The EQP Global series motors meet or exceed NEMA® Design B torque levels. High torque designs prevent motors from stalling under heavy loaded applications and electrical problems such as voltage sags. |
Optimized for Adjustable Speed Drive (ASD) Use | When a motor is run on an ASD, its windings need to be able to withstand sharp voltage spikes coming from the ASD. These spikes can cause winding damage to under-protected motors. The EQP Global series motors have capability to withstand 2000 V in 0.1 μs spikes, protecting them against harm from ASDs causing other motors to fail. |
Model |
HP |
RPM |
Enclosure |
Frame |
Frequency |
Voltage |
Efficiency |
TYPE |
---|---|---|---|---|---|---|---|---|
3/46XDSB44A-P | 0.75 | 1200 | TEFC | 143TC | 60 | 460 | NEMA PREMIUM | C-Face Footless |
3/46XDSC44A-P | 0.75 | 1200 | TEFC | 143TC | 60 | 575 | NEMA PREMIUM | C-Face Footless |
3/46XDSB41A-P | 0.75 | 1200 | TEFC | 143T | 60 | 460 | NEMA PREMIUM | Standard Footed |
3/46XDSC41A-P | 0.75 | 1200 | TEFC | 143T | 60 | 575 | NEMA PREMIUM | Standard Footed |
3/48XDSB41A-P | 0.75 | 900 | TEFC | 145T | 60 | 460 | NEMA PREMIUM | Standard Footed |
3/48XDSC41A-P | 0.75 | 900 | TEFC | 145T | 60 | 575 | NEMA PREMIUM | Standard Footed |
3/46XDSB42A-P | 0.75 | 1200 | TEFC | 143TC | 60 | 460 | NEMA PREMIUM | C-Face Footed |
3/46XDSB47A-P | 0.75 | 1200 | TEFC | 143TC | 60 | 460 | NEMA PREMIUM | C-Face Footed |
3/46XDSC42A-P | 0.75 | 1200 | TEFC | 143TC | 60 | 575 | NEMA PREMIUM | C-Face Footed |
3/46XDSC47A-P | 0.75 | 1200 | TEFC | 143TC | 60 | 575 | NEMA PREMIUM | C-Face Footed |
0014XDSB44A-P | 1 | 1800 | TEFC | 143TC | 60 | 460 | NEMA PREMIUM | C-Face Footless |
0014XDSC44A-P | 1 | 1800 | TEFC | 143TC | 60 | 575 | NEMA PREMIUM | C-Face Footless |
0016XDSB44A-P | 1 | 1200 | TEFC | 145TC | 60 | 460 | NEMA PREMIUM | C-Face Footless |
0016XDSC44A-P | 1 | 1200 | TEFC | 145TC | 60 | 575 | NEMA PREMIUM | C-Face Footless |
0014XDSB41A-P | 1 | 1800 | TEFC | 143T | 60 | 460 | NEMA PREMIUM | Standard Footed |
0014XDSC41A-P | 1 | 1800 | TEFC | 143T | 60 | 575 | NEMA PREMIUM | Standard Footed |
0016XDSB41A-P | 1 | 1200 | TEFC | 145T | 60 | 460 | NEMA PREMIUM | Standard Footed |
0016XDSC41A-P | 1 | 1200 | TEFC | 145T | 60 | 575 | NEMA PREMIUM | Standard Footed |
0014XDSC42A-P | 1 | 1800 | TEFC | 143TC | 60 | 575 | NEMA PREMIUM | C-Face Footed |
0014XDSC47A-P | 1 | 1800 | TEFC | 143TC | 60 | 575 | NEMA PREMIUM | C-Face Footed |
0016XDSB42A-P | 1 | 1200 | TEFC | 145TC | 60 | 460 | NEMA PREMIUM | C-Face Footed |
0016XDSB47A-P | 1 | 1200 | TEFC | 145TC | 60 | 460 | NEMA PREMIUM | C-Face Footed |
0016XDSC42A-P | 1 | 1200 | TEFC | 145TC | 60 | 575 | NEMA PREMIUM | C-Face Footed |
0016XDSC47A-P | 1 | 1200 | TEFC | 145TC | 60 | 575 | NEMA PREMIUM | C-Face Footed |
0018XDSB41A-P | 1 | 900 | TEFC | 182T | 60 | 460 | NEMA PREMIUM | Standard Footed |
0018XDSC41A-P | 1 | 900 | TEFC | 182T | 60 | 575 | NEMA PREMIUM | Standard Footed |
0014XDSB42A-P | 1 | 1800 | TEFC | 143TC | 60 | 460 | NEMA PREMIUM | C-Face Footed |
0014XDSB47A-P | 1 | 1800 | TEFC | 143TC | 60 | 460 | NEMA PREMIUM | C-Face Footed |
Y152XDSB44A-P | 1.5 | 3600 | TEFC | 143TC | 60 | 460 | NEMA PREMIUM | C-Face Footless |
Y152XDSC44A-P | 1.5 | 3600 | TEFC | 143TC | 60 | 575 | NEMA PREMIUM | C-Face Footless |
Y154XDSB44A-P | 1.5 | 1800 | TEFC | 145TC | 60 | 460 | NEMA PREMIUM | C-Face Footless |
Y154XDSC44A-P | 1.5 | 1800 | TEFC | 145TC | 60 | 575 | NEMA PREMIUM | C-Face Footless |
Y156XDSB44A-P | 1.5 | 1200 | TEFC | 182TC | 60 | 460 | NEMA PREMIUM | C-Face Footless |
Y156XDSC44A-P | 1.5 | 1200 | TEFC | 182TC | 60 | 575 | NEMA PREMIUM | C-Face Footless |
Y156XDSC42A-P | 1.5 | 1200 | TEFC | 182TC | 60 | 575 | NEMA PREMIUM | C-Face Footed |
Y156XDSC47A-P | 1.5 | 1200 | TEFC | 182TC | 60 | 575 | NEMA PREMIUM | C-Face Footed |
Y156XDSB41A-P | 1.5 | 1200 | TEFC | 182T | 60 | 460 | NEMA PREMIUM | Standard Footed |
Y156XDSC41A-P | 1.5 | 1200 | TEFC | 182T | 60 | 575 | NEMA PREMIUM | Standard Footed |
Y152XDSB41A-P | 1.5 | 3600 | TEFC | 143T | 60 | 460 | NEMA PREMIUM | Standard Footed |
Y152XDSC41A-P | 1.5 | 3600 | TEFC | 143T | 60 | 575 | NEMA PREMIUM | Standard Footed |
Y154XDSB41A-P | 1.5 | 1800 | TEFC | 145T | 60 | 460 | NEMA PREMIUM | Standard Footed |
Y154XDSC41A-P | 1.5 | 1800 | TEFC | 145T | 60 | 575 | NEMA PREMIUM | Standard Footed |
Y156XDSB42A-P | 1.5 | 1200 | TEFC | 182TC | 60 | 460 | NEMA PREMIUM | C-Face Footed |
Y156XDSB47A-P | 1.5 | 1200 | TEFC | 182TC | 60 | 460 | NEMA PREMIUM | C-Face Footed |
Y152XDSB42A-P | 1.5 | 3600 | TEFC | 143TC | 60 | 460 | NEMA PREMIUM | C-Face Footed |
Y152XDSB47A-P | 1.5 | 3600 | TEFC | 143TC | 60 | 460 | NEMA PREMIUM | C-Face Footed |
Y152XDSC42A-P | 1.5 | 3600 | TEFC | 143TC | 60 | 575 | NEMA PREMIUM | C-Face Footed |
Y152XDSC47A-P | 1.5 | 3600 | TEFC | 143TC | 60 | 575 | NEMA PREMIUM | C-Face Footed |
Y154XDSB42A-P | 1.5 | 1800 | TEFC | 145TC | 60 | 460 | NEMA PREMIUM | C-Face Footed |
Y154XDSB47A-P | 1.5 | 1800 | TEFC | 145TC | 60 | 460 | NEMA PREMIUM | C-Face Footed |
Y154XDSC42A-P | 1.5 | 1800 | TEFC | 145TC | 60 | 575 | NEMA PREMIUM | C-Face Footed |
Y154XDSC47A-P | 1.5 | 1800 | TEFC | 145TC | 60 | 575 | NEMA PREMIUM | C-Face Footed |
Y158XDSB41A-P | 1.5 | 900 | TEFC | 184T | 60 | 460 | NEMA PREMIUM | Standard Footed |
Y158XDSC41A-P | 1.5 | 900 | TEFC | 184T | 60 | 575 | NEMA PREMIUM | Standard Footed |
0024XDSC44A-P | 2 | 1800 | TEFC | 145TC | 60 | 575 | NEMA PREMIUM | C-Face Footless |
0026XDSB44A-P | 2 | 1200 | TEFC | 184TC | 60 | 460 | NEMA PREMIUM | C-Face Footless |
0026XDSC44A-P | 2 | 1200 | TEFC | 184TC | 60 | 575 | NEMA PREMIUM | C-Face Footless |
0022XDSB44A-P | 2 | 3600 | TEFC | 145TC | 60 | 460 | NEMA PREMIUM | C-Face Footless |
0022XDSC44A-P | 2 | 3600 | TEFC | 145TC | 60 | 575 | NEMA PREMIUM | C-Face Footless |
0024XDSB44A-P | 2 | 1800 | TEFC | 145TC | 60 | 460 | NEMA PREMIUM | C-Face Footless |
0026XDSC41A-P | 2 | 1200 | TEFC | 184T | 60 | 575 | NEMA PREMIUM | Standard Footed |
0022XDSB42A-P | 2 | 3600 | TEFC | 145TC | 60 | 460 | NEMA PREMIUM | C-Face Footed |
0022XDSB47A-P | 2 | 3600 | TEFC | 145TC | 60 | 460 | NEMA PREMIUM | C-Face Footed |
0022XDSC42A-P | 2 | 3600 | TEFC | 145TC | 60 | 575 | NEMA PREMIUM | C-Face Footed |
0022XDSC47A-P | 2 | 3600 | TEFC | 145TC | 60 | 575 | NEMA PREMIUM | C-Face Footed |
0022XDSB41A-P | 2 | 3600 | TEFC | 145T | 60 | 460 | NEMA PREMIUM | Standard Footed |
0022XDSC41A-P | 2 | 3600 | TEFC | 145T | 60 | 575 | NEMA PREMIUM | Standard Footed |
0024XDSB41A-P | 2 | 1800 | TEFC | 145T | 60 | 460 | NEMA PREMIUM | Standard Footed |
0024XDSC41A-P | 2 | 1800 | TEFC | 145T | 60 | 575 | NEMA PREMIUM | Standard Footed |
0026XDSB41A-P | 2 | 1200 | TEFC | 184T | 60 | 460 | NEMA PREMIUM | Standard Footed |
0024XDSB42A-P | 2 | 1800 | TEFC | 145TC | 60 | 460 | NEMA PREMIUM | C-Face Footed |
0024XDSB47A-P | 2 | 1800 | TEFC | 145TC | 60 | 460 | NEMA PREMIUM | C-Face Footed |
0024XDSC42A-P | 2 | 1800 | TEFC | 145TC | 60 | 575 | NEMA PREMIUM | C-Face Footed |
0024XDSC47A-P | 2 | 1800 | TEFC | 145TC | 60 | 575 | NEMA PREMIUM | C-Face Footed |
0026XDSB42A-P | 2 | 1200 | TEFC | 184TC | 60 | 460 | NEMA PREMIUM | C-Face Footed |
0026XDSB47A-P | 2 | 1200 | TEFC | 184TC | 60 | 460 | NEMA PREMIUM | C-Face Footed |
0026XDSC42A-P | 2 | 1200 | TEFC | 184TC | 60 | 575 | NEMA PREMIUM | C-Face Footed |
0026XDSC47A-P | 2 | 1200 | TEFC | 184TC | 60 | 575 | NEMA PREMIUM | C-Face Footed |
0028XDSB41A-P | 2 | 900 | TEFC | 213T | 60 | 460 | NEMA PREMIUM | Standard Footed |
0028XDSC41A-P | 2 | 900 | TEFC | 213T | 60 | 575 | NEMA PREMIUM | Standard Footed |
0032XDSB44A-P | 3 | 3600 | TEFC | 182TC | 60 | 460 | NEMA PREMIUM | C-Face Footless |
0032XDSC44A-P | 3 | 3600 | TEFC | 182TC | 60 | 575 | NEMA PREMIUM | C-Face Footless |
0034XDSB44A-P | 3 | 1800 | TEFC | 182TC | 60 | 460 | NEMA PREMIUM | C-Face Footless |
0034XDSC44A-P | 3 | 1800 | TEFC | 182TC | 60 | 575 | NEMA PREMIUM | C-Face Footless |
0036XDSB44A-P | 3 | 1200 | TEFC | 213TC | 60 | 460 | NEMA PREMIUM | C-Face Footless |
0036XDSC44A-P | 3 | 1200 | TEFC | 213TC | 60 | 575 | NEMA PREMIUM | C-Face Footless |
0034XDSB47A-P | 3 | 1800 | TEFC | 182TC | 60 | 460 | NEMA PREMIUM | C-Face Footed |
0034XDSC42A-P | 3 | 1800 | TEFC | 182TC | 60 | 575 | NEMA PREMIUM | C-Face Footed |
0034XDSC47A-P | 3 | 1800 | TEFC | 182TC | 60 | 575 | NEMA PREMIUM | C-Face Footed |
0036XDSB42A-P | 3 | 1200 | TEFC | 213TC | 60 | 460 | NEMA PREMIUM | C-Face Footed |
0036XDSB47A-P | 3 | 1200 | TEFC | 213TC | 60 | 460 | NEMA PREMIUM | C-Face Footed |
0036XDSC42A-P | 3 | 1200 | TEFC | 213TC | 60 | 575 | NEMA PREMIUM | C-Face Footed |
0036XDSC47A-P | 3 | 1200 | TEFC | 213TC | 60 | 575 | NEMA PREMIUM | C-Face Footed |
0032XDSB41A-P | 3 | 3600 | TEFC | 182T | 60 | 460 | NEMA PREMIUM | Standard Footed |
0032XDSC41A-P | 3 | 3600 | TEFC | 182T | 60 | 575 | NEMA PREMIUM | Standard Footed |
0034XDSB41A-P | 3 | 1800 | TEFC | 182T | 60 | 460 | NEMA PREMIUM | Standard Footed |
0034XDSC41A-P | 3 | 1800 | TEFC | 182T | 60 | 575 | NEMA PREMIUM | Standard Footed |
0036XDSB41A-P | 3 | 1200 | TEFC | 213T | 60 | 460 | NEMA PREMIUM | Standard Footed |
0036XDSC41A-P | 3 | 1200 | TEFC | 213T | 60 | 575 | NEMA PREMIUM | Standard Footed |
0032XDSB42A-P | 3 | 3600 | TEFC | 182TC | 60 | 460 | NEMA PREMIUM | C-Face Footed |
0032XDSB47A-P | 3 | 3600 | TEFC | 182TC | 60 | 460 | NEMA PREMIUM | C-Face Footed |
0032XDSC42A-P | 3 | 3600 | TEFC | 182TC | 60 | 575 | NEMA PREMIUM | C-Face Footed |
0032XDSC47A-P | 3 | 3600 | TEFC | 182TC | 60 | 575 | NEMA PREMIUM | C-Face Footed |
0034XDSB42A-P | 3 | 1800 | TEFC | 182TC | 60 | 460 | NEMA PREMIUM | C-Face Footed |
0038XDSB41A-P | 3 | 900 | TEFC | 215T | 60 | 460 | NEMA PREMIUM | Standard Footed |
0038XDSC41A-P | 3 | 900 | TEFC | 215T | 60 | 575 | NEMA PREMIUM | Standard Footed |
0052XDSB44A-P | 5 | 3600 | TEFC | 184TC | 60 | 460 | NEMA PREMIUM | C-Face Footless |
0052XDSC44A-P | 5 | 3600 | TEFC | 184TC | 60 | 575 | NEMA PREMIUM | C-Face Footless |
0054XDSB44A-P | 5 | 1800 | TEFC | 184TC | 60 | 460 | NEMA PREMIUM | C-Face Footless |
0054XDSC44A-P | 5 | 1800 | TEFC | 184TC | 60 | 575 | NEMA PREMIUM | C-Face Footless |
0056XDSB44A-P | 5 | 1200 | TEFC | 215TC | 60 | 460 | NEMA PREMIUM | C-Face Footless |
0056XDSC44A-P | 5 | 1200 | TEFC | 215TC | 60 | 575 | NEMA PREMIUM | C-Face Footless |
0052XDSB42A-P | 5 | 3600 | TEFC | 184TC | 60 | 460 | NEMA PREMIUM | C-Face Footed |
0052XDSB47A-P | 5 | 3600 | TEFC | 184TC | 60 | 460 | NEMA PREMIUM | C-Face Footed |
0052XDSC42A-P | 5 | 3600 | TEFC | 184TC | 60 | 575 | NEMA PREMIUM | C-Face Footed |
0052XDSB41A-P | 5 | 3600 | TEFC | 184T | 60 | 460 | NEMA PREMIUM | Standard Footed |
0052XDSC41A-P | 5 | 3600 | TEFC | 184T | 60 | 575 | NEMA PREMIUM | Standard Footed |
0054XDSB41A-P | 5 | 1800 | TEFC | 184T | 60 | 460 | NEMA PREMIUM | Standard Footed |
0054XDSC41A-P | 5 | 1800 | TEFC | 184T | 60 | 575 | NEMA PREMIUM | Standard Footed |
0056XDSB41A-P | 5 | 1200 | TEFC | 215T | 60 | 460 | NEMA PREMIUM | Standard Footed |
0056XDSC41A-P | 5 | 1200 | TEFC | 215T | 60 | 575 | NEMA PREMIUM | Standard Footed |
0052XDSC47A-P | 5 | 3600 | TEFC | 184TC | 60 | 575 | NEMA PREMIUM | C-Face Footed |
0054XDSB42A-P | 5 | 1800 | TEFC | 184TC | 60 | 460 | NEMA PREMIUM | C-Face Footed |
0054XDSB47A-P | 5 | 1800 | TEFC | 184TC | 60 | 460 | NEMA PREMIUM | C-Face Footed |
0054XDSC42A-P | 5 | 1800 | TEFC | 184TC | 60 | 575 | NEMA PREMIUM | C-Face Footed |
0054XDSC47A-P | 5 | 1800 | TEFC | 184TC | 60 | 575 | NEMA PREMIUM | C-Face Footed |
0056XDSB42A-P | 5 | 1200 | TEFC | 215TC | 60 | 460 | NEMA PREMIUM | C-Face Footed |
0056XDSB47A-P | 5 | 1200 | TEFC | 215TC | 60 | 460 | NEMA PREMIUM | C-Face Footed |
0056XDSC42A-P | 5 | 1200 | TEFC | 215TC | 60 | 575 | NEMA PREMIUM | C-Face Footed |
0056XDSC47A-P | 5 | 1200 | TEFC | 215TC | 60 | 575 | NEMA PREMIUM | C-Face Footed |
0058XDSB41A-P | 5 | 900 | TEFC | 254T | 60 | 460 | NEMA PREMIUM | Standard Footed |
0058XDSC41A-P | 5 | 900 | TEFC | 254T | 60 | 575 | NEMA PREMIUM | Standard Footed |
Y752XDSB44A-P | 7.5 | 3600 | TEFC | 213TC | 60 | 460 | NEMA PREMIUM | C-Face Footless |
Y752XDSC44A-P | 7.5 | 3600 | TEFC | 213TC | 60 | 575 | NEMA PREMIUM | C-Face Footless |
Y754XDSB44A-P | 7.5 | 1800 | TEFC | 213TC | 60 | 460 | NEMA PREMIUM | C-Face Footless |
Y754XDSC44A-P | 7.5 | 1800 | TEFC | 213TC | 60 | 575 | NEMA PREMIUM | C-Face Footless |
Y756XDSB44A-P | 7.5 | 1200 | TEFC | 254TC | 60 | 460 | NEMA PREMIUM | C-Face Footless |
Y756XDSC44A-P | 7.5 | 1200 | TEFC | 254TC | 60 | 575 | NEMA PREMIUM | C-Face Footless |
Y752XDSB42A-P | 7.5 | 3600 | TEFC | 213TC | 60 | 460 | NEMA PREMIUM | C-Face Footed |
Y752XDSB47A-P | 7.5 | 3600 | TEFC | 213TC | 60 | 460 | NEMA PREMIUM | C-Face Footed |
Y752XDSC42A-P | 7.5 | 3600 | TEFC | 213TC | 60 | 575 | NEMA PREMIUM | C-Face Footed |
Y752XDSB41A-P | 7.5 | 3600 | TEFC | 213T | 60 | 460 | NEMA PREMIUM | Standard Footed |
Y752XDSC41A-P | 7.5 | 3600 | TEFC | 213T | 60 | 575 | NEMA PREMIUM | Standard Footed |
Y754XDSB41A-P | 7.5 | 1800 | TEFC | 213T | 60 | 460 | NEMA PREMIUM | Standard Footed |
Y754XDSC41A-P | 7.5 | 1800 | TEFC | 213T | 60 | 575 | NEMA PREMIUM | Standard Footed |
Y756XDSB41A-P | 7.5 | 1200 | TEFC | 254T | 60 | 460 | NEMA PREMIUM | Standard Footed |
Y756XDSC41A-P | 7.5 | 1200 | TEFC | 254T | 60 | 575 | NEMA PREMIUM | Standard Footed |
Y754XDSC42A-P | 7.5 | 1800 | TEFC | 213TC | 60 | 575 | NEMA PREMIUM | C-Face Footed |
Y754XDSC47A-P | 7.5 | 1800 | TEFC | 213TC | 60 | 575 | NEMA PREMIUM | C-Face Footed |
Y756XDSB42A-P | 7.5 | 1200 | TEFC | 254TC | 60 | 460 | NEMA PREMIUM | C-Face Footed |
Y756XDSB47A-P | 7.5 | 1200 | TEFC | 254TC | 60 | 460 | NEMA PREMIUM | C-Face Footed |
Y756XDSC42A-P | 7.5 | 1200 | TEFC | 254TC | 60 | 575 | NEMA PREMIUM | C-Face Footed |
Y756XDSC47A-P | 7.5 | 1200 | TEFC | 254TC | 60 | 575 | NEMA PREMIUM | C-Face Footed |
Y752XDSC47A-P | 7.5 | 3600 | TEFC | 213TC | 60 | 575 | NEMA PREMIUM | C-Face Footed |
Y754XDSB42A-P | 7.5 | 1800 | TEFC | 213TC | 60 | 460 | NEMA PREMIUM | C-Face Footed |
Y754XDSB47A-P | 7.5 | 1800 | TEFC | 213TC | 60 | 460 | NEMA PREMIUM | C-Face Footed |
Y758XDSB41A-P | 7.5 | 900 | TEFC | 256T | 60 | 460 | NEMA PREMIUM | Standard Footed |
Y758XDSC41A-P | 7.5 | 900 | TEFC | 256T | 60 | 575 | NEMA PREMIUM | Standard Footed |
0102XDSB44A-P | 10 | 3600 | TEFC | 215TC | 60 | 460 | NEMA PREMIUM | C-Face Footless |
0102XDSC44A-P | 10 | 3600 | TEFC | 215TC | 60 | 575 | NEMA PREMIUM | C-Face Footless |
0104XDSB44A-P | 10 | 1800 | TEFC | 215TC | 60 | 460 | NEMA PREMIUM | C-Face Footless |
0104XDSC44A-P | 10 | 1800 | TEFC | 215TC | 60 | 575 | NEMA PREMIUM | C-Face Footless |
0106XDSB44A-P | 10 | 1200 | TEFC | 256TC | 60 | 460 | NEMA PREMIUM | C-Face Footless |
0106XDSC44A-P | 10 | 1200 | TEFC | 256TC | 60 | 575 | NEMA PREMIUM | C-Face Footless |
0106XDSB41A-P | 10 | 1200 | TEFC | 256T | 60 | 460 | NEMA PREMIUM | Standard Footed |
0106XDSC41A-P | 10 | 1200 | TEFC | 256T | 60 | 575 | NEMA PREMIUM | Standard Footed |
0104XDSC41A-P | 10 | 1800 | TEFC | 215T | 60 | 575 | NEMA PREMIUM | Standard Footed |
0102XDSB41A-P | 10 | 3600 | TEFC | 215T | 60 | 460 | NEMA PREMIUM | Standard Footed |
0102XDSC41A-P | 10 | 3600 | TEFC | 215T | 60 | 575 | NEMA PREMIUM | Standard Footed |
0104XDSB41A-P | 10 | 1800 | TEFC | 215T | 60 | 460 | NEMA PREMIUM | Standard Footed |
0102XDSB42A-P | 10 | 3600 | TEFC | 215TC | 60 | 460 | NEMA PREMIUM | C-Face Footed |
0102XDSB47A-P | 10 | 3600 | TEFC | 215TC | 60 | 460 | NEMA PREMIUM | C-Face Footed |
0102XDSC42A-P | 10 | 3600 | TEFC | 215TC | 60 | 575 | NEMA PREMIUM | C-Face Footed |
0102XDSC47A-P | 10 | 3600 | TEFC | 215TC | 60 | 575 | NEMA PREMIUM | C-Face Footed |
0104XDSB42A-P | 10 | 1800 | TEFC | 215TC | 60 | 460 | NEMA PREMIUM | C-Face Footed |
0104XDSB47A-P | 10 | 1800 | TEFC | 215TC | 60 | 460 | NEMA PREMIUM | C-Face Footed |
0104XDSC42A-P | 10 | 1800 | TEFC | 215TC | 60 | 575 | NEMA PREMIUM | C-Face Footed |
0104XDSC47A-P | 10 | 1800 | TEFC | 215TC | 60 | 575 | NEMA PREMIUM | C-Face Footed |
0106XDSB42A-P | 10 | 1200 | TEFC | 256TC | 60 | 460 | NEMA PREMIUM | C-Face Footed |
0106XDSB47A-P | 10 | 1200 | TEFC | 256TC | 60 | 460 | NEMA PREMIUM | C-Face Footed |
0106XDSC42A-P | 10 | 1200 | TEFC | 256TC | 60 | 575 | NEMA PREMIUM | C-Face Footed |
0106XDSC47A-P | 10 | 1200 | TEFC | 256TC | 60 | 575 | NEMA PREMIUM | C-Face Footed |
0108XDSB41A-P | 10 | 900 | TEFC | 284T | 60 | 460 | NEMA PREMIUM | Standard Footed |
0108XDSC41A-P | 10 | 900 | TEFC | 284T | 60 | 575 | NEMA PREMIUM | Standard Footed |
0152XDSB44A-P | 15 | 3600 | TEFC | 254TC | 60 | 460 | NEMA PREMIUM | C-Face Footless |
0152XDSC44A-P | 15 | 3600 | TEFC | 254TC | 60 | 575 | NEMA PREMIUM | C-Face Footless |
0154XDSB44A-P | 15 | 1800 | TEFC | 254TC | 60 | 460 | NEMA PREMIUM | C-Face Footless |
0154XDSC44A-P | 15 | 1800 | TEFC | 254TC | 60 | 575 | NEMA PREMIUM | C-Face Footless |
0156XDSB44A-P | 15 | 1200 | TEFC | 284TC | 60 | 460 | NEMA PREMIUM | C-Face Footless |
0156XDSC44A-P | 15 | 1200 | TEFC | 284TC | 60 | 575 | NEMA PREMIUM | C-Face Footless |
0152XDSB41A-P | 15 | 3600 | TEFC | 254T | 60 | 460 | NEMA PREMIUM | Standard Footed |
0152XDSC41A-P | 15 | 3600 | TEFC | 254T | 60 | 575 | NEMA PREMIUM | Standard Footed |
0154XDSB41A-P | 15 | 1800 | TEFC | 254T | 60 | 460 | NEMA PREMIUM | Standard Footed |
0154XDSC41A-P | 15 | 1800 | TEFC | 254T | 60 | 575 | NEMA PREMIUM | Standard Footed |
0156XDSB41A-P | 15 | 1200 | TEFC | 284T | 60 | 460 | NEMA PREMIUM | Standard Footed |
0156XDSC41A-P | 15 | 1200 | TEFC | 284T | 60 | 575 | NEMA PREMIUM | Standard Footed |
0152XDSB42A-P | 15 | 3600 | TEFC | 254TC | 60 | 460 | NEMA PREMIUM | C-Face Footed |
0158XDSB41A-P | 15 | 900 | TEFC | 286T | 60 | 460 | NEMA PREMIUM | Standard Footed |
0158XDSC41A-P | 15 | 900 | TEFC | 286T | 60 | 575 | NEMA PREMIUM | Standard Footed |
0152XDSB47A-P | 15 | 3600 | TEFC | 254TC | 60 | 460 | NEMA PREMIUM | C-Face Footed |
0152XDSC42A-P | 15 | 3600 | TEFC | 254TC | 60 | 575 | NEMA PREMIUM | C-Face Footed |
0152XDSC47A-P | 15 | 3600 | TEFC | 254TC | 60 | 575 | NEMA PREMIUM | C-Face Footed |
0154XDSB42A-P | 15 | 1800 | TEFC | 254TC | 60 | 460 | NEMA PREMIUM | C-Face Footed |
0154XDSB47A-P | 15 | 1800 | TEFC | 254TC | 60 | 460 | NEMA PREMIUM | C-Face Footed |
0154XDSC42A-P | 15 | 1800 | TEFC | 254TC | 60 | 575 | NEMA PREMIUM | C-Face Footed |
0154XDSC47A-P | 15 | 1800 | TEFC | 254TC | 60 | 575 | NEMA PREMIUM | C-Face Footed |
0156XDSB42A-P | 15 | 1200 | TEFC | 284TC | 60 | 460 | NEMA PREMIUM | C-Face Footed |
0156XDSC42A-P | 15 | 1200 | TEFC | 284TC | 60 | 575 | NEMA PREMIUM | C-Face Footed |
0202XDSB44A-P | 20 | 3600 | TEFC | 256TC | 60 | 460 | NEMA PREMIUM | C-Face Footless |
0202XDSC44A-P | 20 | 3600 | TEFC | 256TC | 60 | 575 | NEMA PREMIUM | C-Face Footless |
0204XDSB44A-P | 20 | 1800 | TEFC | 256TC | 60 | 460 | NEMA PREMIUM | C-Face Footless |
0204XDSC44A-P | 20 | 1800 | TEFC | 256TC | 60 | 575 | NEMA PREMIUM | C-Face Footless |
0206XDSB44A-P | 20 | 1200 | TEFC | 286TC | 60 | 460 | NEMA PREMIUM | C-Face Footless |
0206XDSC44A-P | 20 | 1200 | TEFC | 286TC | 60 | 575 | NEMA PREMIUM | C-Face Footless |
0202XDSB41A-P | 20 | 3600 | TEFC | 256T | 60 | 460 | NEMA PREMIUM | Standard Footed |
0202XDSC41A-P | 20 | 3600 | TEFC | 256T | 60 | 575 | NEMA PREMIUM | Standard Footed |
0204XDSB41A-P | 20 | 1800 | TEFC | 256T | 60 | 460 | NEMA PREMIUM | Standard Footed |
0204XDSC41A-P | 20 | 1800 | TEFC | 256T | 60 | 575 | NEMA PREMIUM | Standard Footed |
0206XDSB41A-P | 20 | 1200 | TEFC | 286T | 60 | 460 | NEMA PREMIUM | Standard Footed |
0206XDSC41A-P | 20 | 1200 | TEFC | 286T | 60 | 575 | NEMA PREMIUM | Standard Footed |
0204XDSB42A-P | 20 | 1800 | TEFC | 256TC | 60 | 460 | NEMA PREMIUM | C-Face Footed |
0204XDSB47A-P | 20 | 1800 | TEFC | 256TC | 60 | 460 | NEMA PREMIUM | C-Face Footed |
0204XDSC42A-P | 20 | 1800 | TEFC | 256TC | 60 | 575 | NEMA PREMIUM | C-Face Footed |
0204XDSC47A-P | 20 | 1800 | TEFC | 256TC | 60 | 575 | NEMA PREMIUM | C-Face Footed |
0206XDSB42A-P | 20 | 1200 | TEFC | 286TC | 60 | 460 | NEMA PREMIUM | C-Face Footed |
0206XDSC42A-P | 20 | 1200 | TEFC | 286TC | 60 | 575 | NEMA PREMIUM | C-Face Footed |
0208XDSB41A-P | 20 | 900 | TEFC | 324T | 60 | 460 | NEMA PREMIUM | Standard Footed |
0208XDSC41A-P | 20 | 900 | TEFC | 324T | 60 | 575 | NEMA PREMIUM | Standard Footed |
0202XDSB42A-P | 20 | 3600 | TEFC | 256TC | 60 | 460 | NEMA PREMIUM | C-Face Footed |
0202XDSB47A-P | 20 | 3600 | TEFC | 256TC | 60 | 460 | NEMA PREMIUM | C-Face Footed |
0202XDSC42A-P | 20 | 3600 | TEFC | 256TC | 60 | 575 | NEMA PREMIUM | C-Face Footed |
0202XDSC47A-P | 20 | 3600 | TEFC | 256TC | 60 | 575 | NEMA PREMIUM | C-Face Footed |
0252XDSB44B-P | 25 | 3600 | TEFC | 284TSC | 60 | 460 | NEMA PREMIUM | C-Face Footless |
0252XDSC44B-P | 25 | 3600 | TEFC | 284TSC | 60 | 575 | NEMA PREMIUM | C-Face Footless |
0254XDSB44A-P | 25 | 1800 | TEFC | 284TC | 60 | 460 | NEMA PREMIUM | C-Face Footless |
0254XDSC44A-P | 25 | 1800 | TEFC | 284TC | 60 | 575 | NEMA PREMIUM | C-Face Footless |
0256XDSB44A-P | 25 | 1200 | TEFC | 324TC | 60 | 460 | NEMA PREMIUM | C-Face Footless |
0256XDSC44A-P | 25 | 1200 | TEFC | 324TC | 60 | 575 | NEMA PREMIUM | C-Face Footless |
0252XDSB41B-P | 25 | 3600 | TEFC | 284TS | 60 | 460 | NEMA PREMIUM | Standard Footed |
0252XDSC41B-P | 25 | 3600 | TEFC | 284TS | 60 | 575 | NEMA PREMIUM | Standard Footed |
0254XDSB41A-P | 25 | 1800 | TEFC | 284T | 60 | 460 | NEMA PREMIUM | Standard Footed |
0254XDSC41A-P | 25 | 1800 | TEFC | 284T | 60 | 575 | NEMA PREMIUM | Standard Footed |
0256XDSB41A-P | 25 | 1200 | TEFC | 324T | 60 | 460 | NEMA PREMIUM | Standard Footed |
0256XDSC41A-P | 25 | 1200 | TEFC | 324T | 60 | 575 | NEMA PREMIUM | Standard Footed |
0254XDSC42A-P | 25 | 1800 | TEFC | 284TC | 60 | 575 | NEMA PREMIUM | C-Face Footed |
0256XDSB42A-P | 25 | 1200 | TEFC | 324TC | 60 | 460 | NEMA PREMIUM | C-Face Footed |
0256XDSC42A-P | 25 | 1200 | TEFC | 324TC | 60 | 575 | NEMA PREMIUM | C-Face Footed |
0258XDSB41A-P | 25 | 900 | TEFC | 326T | 60 | 460 | NEMA PREMIUM | Standard Footed |
0258XDSC41A-P | 25 | 900 | TEFC | 326T | 60 | 575 | NEMA PREMIUM | Standard Footed |
0252XDSB42B-P | 25 | 3600 | TEFC | 284TSC | 60 | 460 | NEMA PREMIUM | C-Face Footed |
0252XDSC42B-P | 25 | 3600 | TEFC | 284TSC | 60 | 575 | NEMA PREMIUM | C-Face Footed |
0254XDSB42A-P | 25 | 1800 | TEFC | 284TC | 60 | 460 | NEMA PREMIUM | C-Face Footed |
0254XDSB41B-P | 25 | 1800 | TEFC | 284TS | 60 | 460 | NEMA PREMIUM | Standard Footed |
0254XDSC41B-P | 25 | 1800 | TEFC | 284TS | 60 | 575 | NEMA PREMIUM | Standard Footed |
0302XDSB44B-P | 30 | 3600 | TEFC | 286TSC | 60 | 460 | NEMA PREMIUM | C-Face Footless |
0302XDSC44B-P | 30 | 3600 | TEFC | 286TSC | 60 | 575 | NEMA PREMIUM | C-Face Footless |
0304XDSB44A-P | 30 | 1800 | TEFC | 286TC | 60 | 460 | NEMA PREMIUM | C-Face Footless |
0304XDSC44A-P | 30 | 1800 | TEFC | 286TC | 60 | 575 | NEMA PREMIUM | C-Face Footless |
0306XDSB44A-P | 30 | 1200 | TEFC | 326TC | 60 | 460 | NEMA PREMIUM | C-Face Footless |
0306XDSC44A-P | 30 | 1200 | TEFC | 326TC | 60 | 575 | NEMA PREMIUM | C-Face Footless |
0302XDSB41B-P | 30 | 3600 | TEFC | 286TS | 60 | 460 | NEMA PREMIUM | Standard Footed |
0302XDSC41B-P | 30 | 3600 | TEFC | 286TS | 60 | 575 | NEMA PREMIUM | Standard Footed |
0304XDSB41A-P | 30 | 1800 | TEFC | 286T | 60 | 460 | NEMA PREMIUM | Standard Footed |
0304XDSC41A-P | 30 | 1800 | TEFC | 286T | 60 | 575 | NEMA PREMIUM | Standard Footed |
0306XDSB41A-P | 30 | 1200 | TEFC | 326T | 60 | 460 | NEMA PREMIUM | Standard Footed |
0306XDSC41A-P | 30 | 1200 | TEFC | 326T | 60 | 575 | NEMA PREMIUM | Standard Footed |
0302XDSB42B-P | 30 | 3600 | TEFC | 286TSC | 60 | 460 | NEMA PREMIUM | C-Face Footed |
0302XDSC42B-P | 30 | 3600 | TEFC | 286TSC | 60 | 575 | NEMA PREMIUM | C-Face Footed |
0304XDSB42A-P | 30 | 1800 | TEFC | 286TC | 60 | 460 | NEMA PREMIUM | C-Face Footed |
0304XDSC42A-P | 30 | 1800 | TEFC | 286TC | 60 | 575 | NEMA PREMIUM | C-Face Footed |
0306XDSB42A-P | 30 | 1200 | TEFC | 326TC | 60 | 460 | NEMA PREMIUM | C-Face Footed |
0306XDSC42A-P | 30 | 1200 | TEFC | 326TC | 60 | 575 | NEMA PREMIUM | C-Face Footed |
0308XDSB41A-P | 30 | 900 | TEFC | 364T | 60 | 460 | NEMA PREMIUM | Standard Footed |
0308XDSC41A-P | 30 | 900 | TEFC | 364T | 60 | 575 | NEMA PREMIUM | Standard Footed |
0304XDSB41B-P | 30 | 1800 | TEFC | 286TS | 60 | 460 | NEMA PREMIUM | Standard Footed |
0304XDSC41B-P | 30 | 1800 | TEFC | 286TS | 60 | 575 | NEMA PREMIUM | Standard Footed |
0402XDSB44B-P | 40 | 3600 | TEFC | 324TSC | 60 | 460 | NEMA PREMIUM | C-Face Footless |
0402XDSC44B-P | 40 | 3600 | TEFC | 324TSC | 60 | 575 | NEMA PREMIUM | C-Face Footless |
0404XDSB44A-P | 40 | 1800 | TEFC | 324TC | 60 | 460 | NEMA PREMIUM | C-Face Footless |
0404XDSC44A-P | 40 | 1800 | TEFC | 324TC | 60 | 575 | NEMA PREMIUM | C-Face Footless |
0406XDSB44A-P | 40 | 1200 | TEFC | 364TC | 60 | 460 | NEMA PREMIUM | C-Face Footless |
0406XDSC44A-P | 40 | 1200 | TEFC | 364TC | 60 | 575 | NEMA PREMIUM | C-Face Footless |
0402XDSB41B-P | 40 | 3600 | TEFC | 324TS | 60 | 460 | NEMA PREMIUM | Standard Footed |
0402XDSC41B-P | 40 | 3600 | TEFC | 324TS | 60 | 575 | NEMA PREMIUM | Standard Footed |
0404XDSB41A-P | 40 | 1800 | TEFC | 324T | 60 | 460 | NEMA PREMIUM | Standard Footed |
0404XDSC41A-P | 40 | 1800 | TEFC | 324T | 60 | 575 | NEMA PREMIUM | Standard Footed |
0406XDSB41A-P | 40 | 1200 | TEFC | 364T | 60 | 460 | NEMA PREMIUM | Standard Footed |
0406XDSC41A-P | 40 | 1200 | TEFC | 364T | 60 | 575 | NEMA PREMIUM | Standard Footed |
0402XDSB42B-P | 40 | 3600 | TEFC | 324TSC | 60 | 460 | NEMA PREMIUM | C-Face Footed |
0402XDSC42B-P | 40 | 3600 | TEFC | 324TSC | 60 | 575 | NEMA PREMIUM | C-Face Footed |
0404XDSB42A-P | 40 | 1800 | TEFC | 324TC | 60 | 460 | NEMA PREMIUM | C-Face Footed |
0404XDSC42A-P | 40 | 1800 | TEFC | 324TC | 60 | 575 | NEMA PREMIUM | C-Face Footed |
0406XDSB42A-P | 40 | 1200 | TEFC | 364TC | 60 | 460 | NEMA PREMIUM | C-Face Footed |
0406XDSC42A-P | 40 | 1200 | TEFC | 364TC | 60 | 575 | NEMA PREMIUM | C-Face Footed |
0408XDSB41A-P | 40 | 900 | TEFC | 365T | 60 | 460 | NEMA PREMIUM | Standard Footed |
0408XDSC41A-P | 40 | 900 | TEFC | 365T | 60 | 575 | NEMA PREMIUM | Standard Footed |
0404XDSB41B-P | 40 | 1800 | TEFC | 324TS | 60 | 460 | NEMA PREMIUM | Standard Footed |
0404XDSC41B-P | 40 | 1800 | TEFC | 324TS | 60 | 575 | NEMA PREMIUM | Standard Footed |
0502XDSB44B-P | 50 | 3600 | TEFC | 326TSC | 60 | 460 | NEMA PREMIUM | C-Face Footless |
0502XDSC44B-P | 50 | 3600 | TEFC | 326TSC | 60 | 575 | NEMA PREMIUM | C-Face Footless |
0504XDSB44A-P | 50 | 1800 | TEFC | 326TC | 60 | 460 | NEMA PREMIUM | C-Face Footless |
0504XDSC44A-P | 50 | 1800 | TEFC | 326TC | 60 | 575 | NEMA PREMIUM | C-Face Footless |
0506XDSB44A-P | 50 | 1200 | TEFC | 365TC | 60 | 460 | NEMA PREMIUM | C-Face Footless |
0506XDSC44A-P | 50 | 1200 | TEFC | 365TC | 60 | 575 | NEMA PREMIUM | C-Face Footless |
0502XDSB41B-P | 50 | 3600 | TEFC | 326TS | 60 | 460 | NEMA PREMIUM | Standard Footed |
0502XDSC41B-P | 50 | 3600 | TEFC | 326TS | 60 | 575 | NEMA PREMIUM | Standard Footed |
0504XDSB41A-P | 50 | 1800 | TEFC | 326T | 60 | 460 | NEMA PREMIUM | Standard Footed |
0504XDSC41A-P | 50 | 1800 | TEFC | 326T | 60 | 575 | NEMA PREMIUM | Standard Footed |
0506XDSB41A-P | 50 | 1200 | TEFC | 365T | 60 | 460 | NEMA PREMIUM | Standard Footed |
0506XDSC41A-P | 50 | 1200 | TEFC | 365T | 60 | 575 | NEMA PREMIUM | Standard Footed |
0502XDSB42B-P | 50 | 3600 | TEFC | 326TSC | 60 | 460 | NEMA PREMIUM | C-Face Footed |
0502XDSC42B-P | 50 | 3600 | TEFC | 326TSC | 60 | 575 | NEMA PREMIUM | C-Face Footed |
0504XDSB42A-P | 50 | 1800 | TEFC | 326TC | 60 | 460 | NEMA PREMIUM | C-Face Footed |
0504XDSC42A-P | 50 | 1800 | TEFC | 326TC | 60 | 575 | NEMA PREMIUM | C-Face Footed |
0506XDSB42A-P | 50 | 1200 | TEFC | 365TC | 60 | 460 | NEMA PREMIUM | C-Face Footed |
0506XDSC42A-P | 50 | 1200 | TEFC | 365TC | 60 | 575 | NEMA PREMIUM | C-Face Footed |
0508XDSB41A-P | 50 | 900 | TEFC | 404T | 60 | 460 | NEMA PREMIUM | Standard Footed |
0508XDSC41A-P | 50 | 900 | TEFC | 404T | 60 | 575 | NEMA PREMIUM | Standard Footed |
0504XDSB41B-P | 50 | 1800 | TEFC | 326TS | 60 | 460 | NEMA PREMIUM | Standard Footed |
0504XDSC41B-P | 50 | 1800 | TEFC | 326TS | 60 | 575 | NEMA PREMIUM | Standard Footed |
0602XDSB44B-P | 60 | 3600 | TEFC | 364TSC | 60 | 460 | NEMA PREMIUM | C-Face Footless |
0602XDSC44B-P | 60 | 3600 | TEFC | 364TSC | 60 | 575 | NEMA PREMIUM | C-Face Footless |
0604XDSB44A-P | 60 | 1800 | TEFC | 364TC | 60 | 460 | NEMA PREMIUM | C-Face Footless |
0604XDSC42A-P | 60 | 1800 | TEFC | 364TC | 60 | 575 | NEMA PREMIUM | C-Face Footed |
0602XDSC42B-P | 60 | 3600 | TEFC | 364TSC | 60 | 575 | NEMA PREMIUM | C-Face Footed |
0604XDSB42A-P | 60 | 1800 | TEFC | 364TC | 60 | 460 | NEMA PREMIUM | C-Face Footed |
0602XDSB41B-P | 60 | 3600 | TEFC | 364TS | 60 | 460 | NEMA PREMIUM | Standard Footed |
0602XDSC41B-P | 60 | 3600 | TEFC | 364TS | 60 | 575 | NEMA PREMIUM | Standard Footed |
0604XDSB41A-P | 60 | 1800 | TEFC | 364T | 60 | 460 | NEMA PREMIUM | Standard Footed |
0604XDSC41A-P | 60 | 1800 | TEFC | 364T | 60 | 575 | NEMA PREMIUM | Standard Footed |
0604XDSC44A-P | 60 | 1800 | TEFC | 364TC | 60 | 575 | NEMA PREMIUM | C-Face Footless |
0602XDSB42B-P | 60 | 3600 | TEFC | 364TSC | 60 | 460 | NEMA PREMIUM | C-Face Footed |
0606XDSB41A-P | 60 | 1200 | TEFC | 404T | 60 | 460 | NEMA PREMIUM | Standard Footed |
0606XDSC41A-P | 60 | 1200 | TEFC | 404T | 60 | 575 | NEMA PREMIUM | Standard Footed |
0608XDSB41A-P | 60 | 900 | TEFC | 405T | 60 | 460 | NEMA PREMIUM | Standard Footed |
0604XDSB41B-P | 60 | 1800 | TEFC | 364TS | 60 | 460 | NEMA PREMIUM | Standard Footed |
0604XDSC41B-P | 60 | 1800 | TEFC | 364TS | 60 | 575 | NEMA PREMIUM | Standard Footed |
0752XDSB42B-P | 75 | 3600 | TEFC | 365TSC | 60 | 460 | NEMA PREMIUM | C-Face Footed |
0752XDSC42B-P | 75 | 3600 | TEFC | 365TSC | 60 | 575 | NEMA PREMIUM | C-Face Footed |
0754XDSB42A-P | 75 | 1800 | TEFC | 365TC | 60 | 460 | NEMA PREMIUM | C-Face Footed |
0754XDSC42A-P | 75 | 1800 | TEFC | 365TC | 60 | 575 | NEMA PREMIUM | C-Face Footed |
0752XDSB41B-P | 75 | 3600 | TEFC | 365TS | 60 | 460 | NEMA PREMIUM | Standard Footed |
0752XDSB44B-P | 75 | 3600 | TEFC | 365TSC | 60 | 460 | NEMA PREMIUM | C-Face Footless |
0752XDSC44B-P | 75 | 3600 | TEFC | 365TSC | 60 | 575 | NEMA PREMIUM | C-Face Footless |
0754XDSB44A-P | 75 | 1800 | TEFC | 365TC | 60 | 460 | NEMA PREMIUM | C-Face Footless |
0754XDSC44A-P | 75 | 1800 | TEFC | 365TC | 60 | 575 | NEMA PREMIUM | C-Face Footless |
0756XDSB41A-P | 75 | 1200 | TEFC | 405T | 60 | 460 | NEMA PREMIUM | Standard Footed |
0756XDSC41A-P | 75 | 1200 | TEFC | 405T | 60 | 575 | NEMA PREMIUM | Standard Footed |
0758XDSB41A-R | 75 | 900 | TEFC | S444T | 60 | 460 | NEMA PREMIUM | Standard Footed |
0758XDSB41A | 75 | 900 | TEFC | S444T | 60 | 460 | NEMA PREMIUM | Standard Footed |
0758XDSC41A-R | 75 | 900 | TEFC | S444T | 60 | 575 | NEMA PREMIUM | Standard Footed |
0754XDSB41B-P | 75 | 1800 | TEFC | 365TS | 60 | 460 | NEMA PREMIUM | Standard Footed |
0754XDSC41B-P | 75 | 1800 | TEFC | 365TS | 60 | 575 | NEMA PREMIUM | Standard Footed |
0752XDSC41B-P | 75 | 3600 | TEFC | 365TS | 60 | 575 | NEMA PREMIUM | Standard Footed |
0754XDSB41A-P | 75 | 1800 | TEFC | 365T | 60 | 460 | NEMA PREMIUM | Standard Footed |
0754XDSC41A-P | 75 | 1800 | TEFC | 365T | 60 | 575 | NEMA PREMIUM | Standard Footed |
1008XDSB41A-R | 100 | 900 | TEFC | S445T | 60 | 460 | NEMA PREMIUM | Standard Footed |
1004XDSB41A-P | 100 | 1800 | TEFC | 405T | 60 | 460 | NEMA PREMIUM | Standard Footed |
1004XDSC41A-P | 100 | 1800 | TEFC | 405T | 60 | 575 | NEMA PREMIUM | Standard Footed |
1004XDSB41A-PR | 100 | 1800 | TEFC | 405T | 60 | 460 | NEMA PREMIUM | Standard Footed |
1002XDSB41B-P | 100 | 3600 | TEFC | 405TS | 60 | 460 | NEMA PREMIUM | Standard Footed |
1002XDSC41B-P | 100 | 3600 | TEFC | 405TS | 60 | 575 | NEMA PREMIUM | Standard Footed |
1004XDSB41B-P | 100 | 1800 | TEFC | 405TS | 60 | 460 | NEMA PREMIUM | Standard Footed |
1004XDSC41B-P | 100 | 1800 | TEFC | 405TS | 60 | 575 | NEMA PREMIUM | Standard Footed |
1008XDSC41A-R | 100 | 900 | TEFC | S445T | 60 | 575 | NEMA PREMIUM | Standard Footed |
1008XDSC41A-PR | 100 | 900 | TEFC | S445T | 60 | 575 | NEMA PREMIUM | Standard Footed |
1006XDSB41A-PR | 100 | 1200 | TEFC | S444T | 60 | 460 | NEMA PREMIUM | Standard Footed |
1006XDSC41A-PR | 100 | 1200 | TEFC | S444T | 60 | 575 | NEMA PREMIUM | Standard Footed |
1006XDSB41A-P | 100 | 1200 | TEFC | S444T | 60 | 460 | NEMA PREMIUM | Standard Footed |
1006XDSC41A-P | 100 | 1200 | TEFC | S444T | 60 | 575 | NEMA PREMIUM | Standard Footed |
1252XDSC41B-P | 125 | 3600 | TEFC | S444TS | 60 | 575 | NEMA PREMIUM | Standard Footed |
1252XDSB41B-P | 125 | 3600 | TEFC | S444TS | 60 | 460 | NEMA PREMIUM | Standard Footed |
1254XDSB41B-P | 125 | 1800 | TEFC | S444TS | 60 | 460 | NEMA PREMIUM | Standard Footed |
1254XDSC41B-P | 125 | 1800 | TEFC | S444TS | 60 | 575 | NEMA PREMIUM | Standard Footed |
1256XDSC41A-PR | 125 | 1200 | TEFC | S445T | 60 | 575 | NEMA PREMIUM | Standard Footed |
1256XDSB41A-P | 125 | 1200 | TEFC | S445T | 60 | 460 | NEMA PREMIUM | Standard Footed |
1256XDSC41A-P | 125 | 1200 | TEFC | S445T | 60 | 575 | NEMA PREMIUM | Standard Footed |
1254XDSC41A-PR | 125 | 1800 | TEFC | S444T | 60 | 575 | NEMA PREMIUM | Standard Footed |
1254XDSB41A-P | 125 | 1800 | TEFC | S444T | 60 | 460 | NEMA PREMIUM | Standard Footed |
1254XDSC41A-P | 125 | 1800 | TEFC | S444T | 60 | 575 | NEMA PREMIUM | Standard Footed |
1254XDSB41A-PR | 125 | 1800 | TEFC | S444T | 60 | 460 | NEMA PREMIUM | Standard Footed |
1258XDSB41A | 125 | 900 | TEFC | S447T | 60 | 460 | NEMA PREMIUM | Standard Footed |
1258XDSC41A | 125 | 900 | TEFC | S447T | 60 | 575 | NEMA PREMIUM | Standard Footed |
1258XDSB41A-R | 125 | 900 | TEFC | S447T | 60 | 460 | NEMA PREMIUM | Standard Footed |
1258XDSC41A-R | 125 | 900 | TEFC | S447T | 60 | 575 | NEMA PREMIUM | Standard Footed |
1506XDSB41A-P | 150 | 1200 | TEFC | S447T | 60 | 460 | NEMA PREMIUM | Standard Footed |
1506XDSB41A-P | 150 | 1200 | TEFC | S447T | 60 | 460 | NEMA PREMIUM | Standard Footed |
1502XDSB41B-P | 150 | 3600 | TEFC | S445TS | 60 | 460 | NEMA PREMIUM | Standard Footed |
1502XDSC41B-P | 150 | 3600 | TEFC | S445TS | 60 | 575 | NEMA PREMIUM | Standard Footed |
1504XDSB41B-P | 150 | 1800 | TEFC | S445TS | 60 | 460 | NEMA PREMIUM | Standard Footed |
1504XDSC41B-P | 150 | 1800 | TEFC | S445TS | 60 | 575 | NEMA PREMIUM | Standard Footed |
1504XDSB41A-P | 150 | 1800 | TEFC | S445T | 60 | 460 | NEMA PREMIUM | Standard Footed |
1504XDSC41A-P | 150 | 1800 | TEFC | S445T | 60 | 575 | NEMA PREMIUM | Standard Footed |
1504XDSB41A-PR | 150 | 1800 | TEFC | S445T | 60 | 460 | NEMA PREMIUM | Standard Footed |
1504XDSC41A-PR | 150 | 1800 | TEFC | S445T | 60 | 575 | NEMA PREMIUM | Standard Footed |
1508XDSB41A | 150 | 900 | TEFC | S449T | 60 | 460 | NEMA PREMIUM | Standard Footed |
1508XDSC41A | 150 | 900 | TEFC | S449T | 60 | 575 | NEMA PREMIUM | Standard Footed |
1508XDSB41A-R | 150 | 900 | TEFC | S449T | 60 | 460 | NEMA PREMIUM | Standard Footed |
1508XDSC41A-R | 150 | 900 | TEFC | S449T | 60 | 575 | NEMA PREMIUM | Standard Footed |
2004XDSB41A-P | 200 | 1800 | TEFC | S447T | 60 | 460 | NEMA PREMIUM | Standard Footed |
2004XDSC41A-P | 200 | 1800 | TEFC | S447T | 60 | 575 | NEMA PREMIUM | Standard Footed |
2004XDSB41A-PR | 200 | 1800 | TEFC | S447T | 60 | 460 | NEMA PREMIUM | Standard Footed |
2004XDSC41A-PR | 200 | 1800 | TEFC | S447T | 60 | 575 | NEMA PREMIUM | Standard Footed |
2002XDSB41B-P | 200 | 3600 | TEFC | S447TS | 60 | 460 | NEMA PREMIUM | Standard Footed |
2002XDSC41B-P | 200 | 3600 | TEFC | S447TS | 60 | 575 | NEMA PREMIUM | Standard Footed |
2004XDSB41B-P | 200 | 1800 | TEFC | S447TS | 60 | 460 | NEMA PREMIUM | Standard Footed |
2004XDSC41B-P | 200 | 1800 | TEFC | S447TS | 60 | 575 | NEMA PREMIUM | Standard Footed |
2008XDSB41A | 200 | 900 | TEFC | S449T | 60 | 460 | NEMA PREMIUM | Standard Footed |
2008XDSC41A | 200 | 900 | TEFC | S449T | 60 | 575 | NEMA PREMIUM | Standard Footed |
2008XDSB41A-R | 200 | 900 | TEFC | S449T | 60 | 460 | NEMA PREMIUM | Standard Footed |
2008XDSC41A-R | 200 | 900 | TEFC | S449T | 60 | 575 | NEMA PREMIUM | Standard Footed |
2006XDSB41A | 200 | 1200 | TEFC | S449T | 60 | 460 | NEMA PREMIUM | Standard Footed |
2006XDSB41A-R | 200 | 1200 | TEFC | S449T | 60 | 460 | NEMA PREMIUM | Standard Footed |
2006XDSC41A | 200 | 1200 | TEFC | S449T | 60 | 575 | NEMA PREMIUM | Standard Footed |
2006XDSC41A-R | 200 | 1200 | TEFC | S449T | 60 | 575 | NEMA PREMIUM | Standard Footed |
2506XDSC41A-R | 250 | 1200 | TEFC | S449T | 60 | 575 | NEMA PREMIUM | Standard Footed |
2502XDSB41B | 250 | 3600 | TEFC | B449TS | 60 | 460 | NEMA PREMIUM | Standard Footed |
2502XDSC41B | 250 | 3600 | TEFC | B449TS | 60 | 575 | NEMA PREMIUM | Standard Footed |
2504XDSB41A | 250 | 1800 | TEFC | S449T | 60 | 460 | NEMA PREMIUM | Standard Footed |
2504XDSC41A | 250 | 1800 | TEFC | S449T | 60 | 575 | NEMA PREMIUM | Standard Footed |
2504XDSB41A-R | 250 | 1800 | TEFC | S449T | 60 | 460 | NEMA PREMIUM | Standard Footed |
2504XDSC41A-R | 250 | 1800 | TEFC | S449T | 60 | 575 | NEMA PREMIUM | Standard Footed |
2506XDSB41A | 250 | 1200 | TEFC | S449T | 60 | 460 | NEMA PREMIUM | Standard Footed |
2506XDSB41A-R | 250 | 1200 | TEFC | S449T | 60 | 460 | NEMA PREMIUM | Standard Footed |
2506XDSC41A | 250 | 1200 | TEFC | S449T | 60 | 575 | NEMA PREMIUM | Standard Footed |
3002XDSB41B | 300 | 3600 | TEFC | B449TS | 60 | 460 | NEMA PREMIUM | Standard Footed |
3002XDSC41B | 300 | 3600 | TEFC | B449TS | 60 | 575 | NEMA PREMIUM | Standard Footed |
3006XDSB41A | 300 | 1200 | TEFC | B449T | 60 | 460 | NEMA PREMIUM | Standard Footed |
3006XDSB41A-R | 300 | 1200 | TEFC | B449T | 60 | 460 | NEMA PREMIUM | Standard Footed |
3006XDSC41A | 300 | 1200 | TEFC | B449T | 60 | 575 | NEMA PREMIUM | Standard Footed |
3006XDSC41A-R | 300 | 1200 | TEFC | B449T | 60 | 575 | NEMA PREMIUM | Standard Footed |
3004XDSB41A | 300 | 1800 | TEFC | S449T | 60 | 460 | NEMA PREMIUM | Standard Footed |
3004XDSC41A | 300 | 1800 | TEFC | S449T | 60 | 575 | NEMA PREMIUM | Standard Footed |
3004XDSB41A-R | 300 | 1800 | TEFC | S449T | 60 | 460 | NEMA PREMIUM | Standard Footed |
3004XDSC41A-R | 300 | 1800 | TEFC | S449T | 60 | 575 | NEMA PREMIUM | Standard Footed |
3503XDSB41B | 350 | 3600 | TEFC | B449TS | 60 | 460 | NEMA PREMIUM | Standard Footed |
3503XDSC41B | 350 | 3600 | TEFC | B449TS | 60 | 575 | NEMA PREMIUM | Standard Footed |
3504XDSC41A-R | 350 | 1800 | TEFC | B449T | 60 | 575 | NEMA PREMIUM | Standard Footed |
3506XDSB41A | 350 | 1200 | TEFC | B449T | 60 | 460 | NEMA PREMIUM | Standard Footed |
3506XDSB41A-R | 350 | 1200 | TEFC | B449T | 60 | 460 | NEMA PREMIUM | Standard Footed |
3506XDSC41A | 350 | 1200 | TEFC | B449T | 60 | 575 | NEMA PREMIUM | Standard Footed |
3506XDSC41A-R | 350 | 1200 | TEFC | B449T | 60 | 575 | NEMA PREMIUM | Standard Footed |
3504XDSB41A-R | 350 | 1800 | TEFC | B449T | 60 | 460 | NEMA PREMIUM | Standard Footed |
3504XDSB41A | 350 | 1800 | TEFC | B449T | 60 | 460 | NEMA PREMIUM | Standard Footed |
3504XDSC41A | 350 | 1800 | TEFC | B449T | 60 | 575 | NEMA PREMIUM | Standard Footed |
4004XDSB41A | 400 | 1800 | TEFC | B449T | 60 | 460 | NEMA PREMIUM | Standard Footed |
4004XDSC41A | 400 | 1800 | TEFC | B449T | 60 | 575 | NEMA PREMIUM | Standard Footed |
4004XDSB41A-R | 400 | 1800 | TEFC | B449T | 60 | 460 | NEMA PREMIUM | Standard Footed |
4004XDSC41A-R | 400 | 1800 | TEFC | B449T | 60 | 575 | NEMA PREMIUM | Standard Footed |
Let's talk about your customized solutions and packaged deal options. Fill out the form on the right and our product experts will be in touch shortly!
Register to view our materials and keep informed with our latest updates.
You may enter your filters below to locate manuals, brochures, software, drawings, and other important documents.
Select a category, choose a Product Family, then select from the list of available documents.
If you encounter any problems or have any questions please contact TIC-Webmaster@toshiba.com
Sign me up to receive future updates about Toshiba products
Yes No
