TX-8 Tandem Compound Four Flow

Toshiba's TX-8 series steam turbines are the highest capacity offering from our steam turbine product line-up, providing output of more than 1,100 MW.

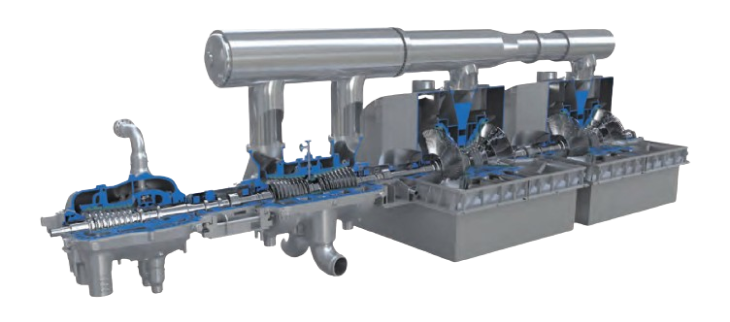

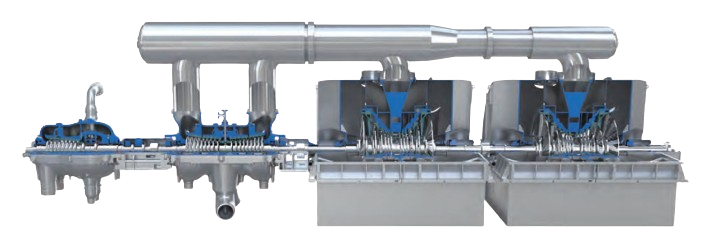

The TX-8 is a tandem compound, reheat downward- or side-exhaust steam turbine whose power train consists of a high-pressure turbine, a double flow intermediate-pressure turbine and two reverse double flow low-pressure turbines.

Worldwide installed capacity of more than 60 GW is a testament to the confidence entrusted to Toshiba by our TX-8 customers.

Features

  • Down- or side-exhaust options.
  • Ideal solution for base load power demands.
  • Equipped with latest supercritical technology.
  • Dynamic steam path design for enhanced performance.
  • Class-leading availability and reliability.

Specifications

Main Steam Pressure up to 271 bara / 3,930 psia
Main Steam Temperature up to 600 deg. C / 1,112 deg. F
Reheat Temperature up to 630 deg. C / 1,166 deg. F
Output up to 1,200 MW
Frequency 50Hz or 60Hz

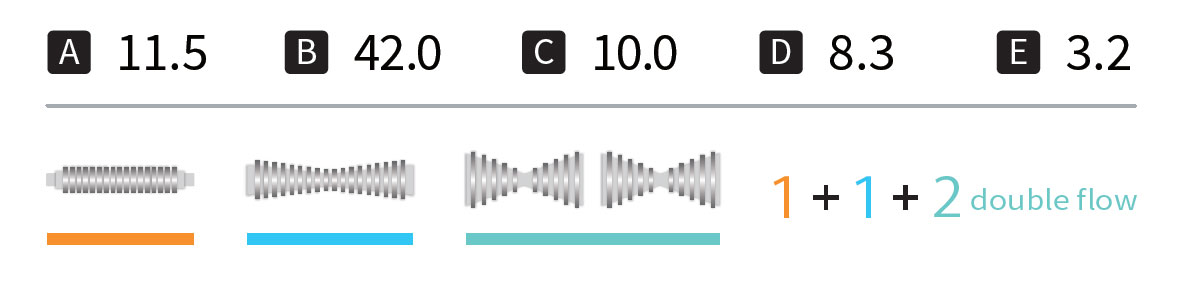

TX8 specifications
unit : meter
